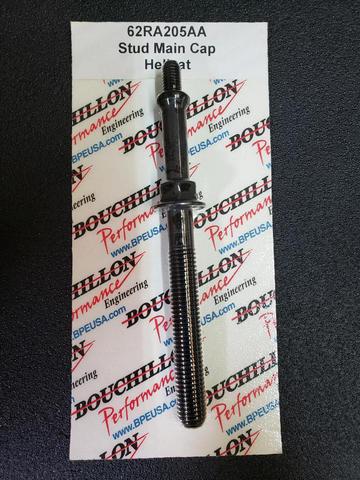

Oil Pickup Main Cap Stud Support Hell Cat Gen III Hemi (62RA205AA)

Oil Pickup Support Main Stud  6.2L Hell Cat, Red Eye, Demon or Helliphant Gen III Hemi's

Use on Hell Cat, Helliphant, Red Eye Gen III Hemi Engines when installing a center sump or rear sump oil pan. Installs into #3 main Cap , use #61RA756 Nut

The normal main cap bolt (w/o Stud) used to replace stud (they are torque to yield so only 1 time to use) on Hell Cat Engines is 62RA204AA

For 5.7L, 6.1L, 6.4L based  Engines, use #61RA333AA

TORQUE SPEC:  Well Oil Threads, tighten to 13nm (10 ft. lbs.), then tighten to 28nm (21 ft. lbs.), then an additional  120 degrees
