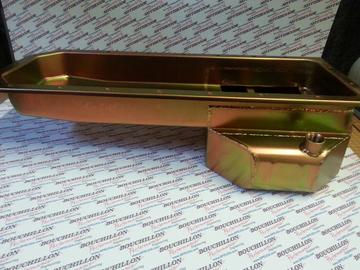

5.7L, 6.1L, 6.4L GEN III REAR SUMP PERFORMANCE OIL PAN 5 1/2" DEEP. DESIGNED FOR VERY LOW STREET VEHICLES, GIVING A TRUE ROAD RACE APPEARANCE. FULLY BAFFLE WITH 3 MOVEABLE TRAP DOORS TO OIL WHERE IT IS REQUIRED. SUMP DIMENSIONS:8 7/8" LONG,13 1/4" WIDE 5 1/2" DEEP
CAPACITY: 9 QUARTS PLUS FILTER (per Milodon website)
FULLY BAFFLED FOR COMPETITION USE. HIGH STRENGTH MAGNETIC DRAIN PLUG INCLUDED
OIL PICKUP REQUIREMENTS:
FOR 2003-2008 TRUCK 5.7L, 2006-2010 6.1L ENGINES USE PICKUP #18334.
FOR 2009-2016 5.7L TRUCK AND CAR ENGINES, 2011-2016 6.4L ENGINES USE PICKUP #18348
OIL LEVEL INDICATOR AND TUBE REQUIRED: 61RA757 INDICATOR & 61RA683 TUBE
ALWAYS CHECK PAN DEPTH AND OIL PICK CLEARANCE, AND ADJUST IF NOT CORRECT. PICKUP SHOULD BE 1/8" FROM BOTTOM OF OIL PAN
NOTE: WILL NOTE WORK OR FIT ON 6.2L HELL CAT ENGINES
1-USE 61R065AA OIL PAN BOLT SET WHEN REMOVING A CAST ALUMINUM OIL PAN AND REPLACING IT WITH THIS PAN OR ANY OTHER SHEETMETAL OIL PAN. THIS BOLT KIT IS 5 MM SHORTER THAN BOLTS USED ON CAST ALUMINUM PANS.
2-On 5.7L Engines you may need to order 61RA333AA Main Stud & 61RA756 Nut on many 5.7L engines that originally came with a front sump oil pan (such as Car Engines). The stud and nut supports the extended oil pickup to the rear of the engine. NOT INCLUDED. You can use the same number on 6.1L & 6.4L Engines. Hell Cat 6.2L, Red Eye, Demon & Helliphant use #64R205AA
3- Torque To Yield, recommended replacement if removed.
Use MOPAR RTV SEALER (5010884AD) for more than excellent sealing ability.
