This Is Our Bolt -in/Drop-in/Resembles Original Style Extreme Heavy Duty Aluminum Radiator Assembly for A HELL CAT 6.2L Gen III Hemi Installations. It comes complete with Custom Aluminum Shroud with TWIN HD SPAL Fans Installed, Electronic Fan Controller and Sender, and Air By Pass flaps already assembled and installed. Just wire your controller and mount your sender and you are done. Radiator Core support Opening is 26". Comes with our "State of the Art" 2 Row X 1 1/4" Core for Excellent Cooling Ability. The Top Tank Resembles the Old Style Fedders Tank found on most Older Muscle Cars.
Works with:2015-2023 6.2L Hell Cat, Demon, Red Eye, 7.0L Hellaphant Crate Engines
66-69 B BODY WITH TRANSMISSION OIL COOLER
Proudly Manufactured in the USA by Griffin Radiator for Bouchillon Performance Engineering
NOTE: 1-Fits 1966-1969 B-Body with 26" Radiator Support (Core Support) Opening...measure left to right for proper opening width with automatic transmissions
2-Will Not Work with 2003-2023 DR 5.7L Dodge Truck Engines, 6.1L, 6.4L Car Engines or Truck Engines
3-At this time we do not have a satisfactory fitting Molded Radiator Hoses,
4-Use S6074X Stainless Overflow Tank to Complete Installation (Not Included)
5-On A/C Applications, use BPE6665 Trinary Switch to control fan operation when A/C is on. It, along with Electronic Fan Controller on this Radiator will only allow Fan to run when required. Fan Operation, generally is not needed at 50 mph highway speeds or when A/C Compressor is First Cut on.
6-This Radiator is generally used on Automatic Transmission Vehicles, since there is a Transmission Cooler Built In. But can be used in a Manual Transmission application also
7- Bottom Left Outlet Nipple Diameter 2" & Inlet Nipple Diameter Top Right 1 3/4" Diameter
8- As in All Gen III Hemi's, we recommend Changine Factory 208 degree Thermostat to #61T798 180 degree for all 5.7/6.1/6.2/6.4 (61T798)

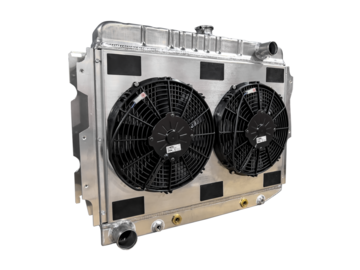

9-PICTURE OF RADIATOR IS AN EXACT PIC OF THE ACTUAL RADIATOR
